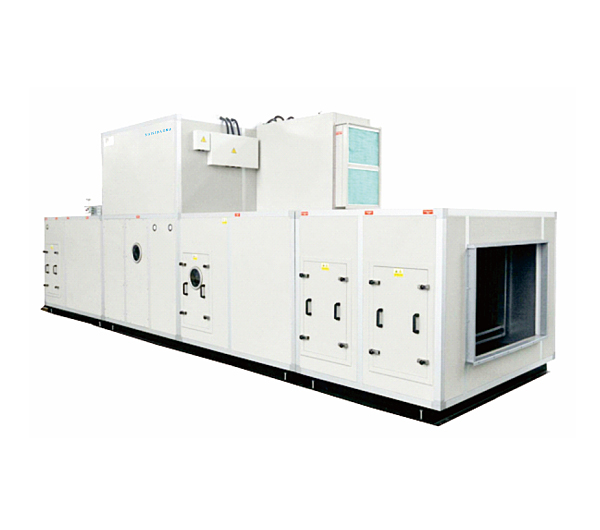

Brand new wind wheel dehumidifier
适用环境：NAISIDA
产品特性：
特殊定制：no
质量认证：
可选型号：AY-Z500NAY-Z1000NAY-Z1500NAY-Z2300NAY-Z3000NAY-Z4500NAY-Z7000NAY-Z12000NAY-Z1800NAY-Z24000NAY-Z30000NAY-Z4000NAY-Z50000N
电商链接：
Model
Processing air volume (m²/h)
Fresh air volume (m²/h)
Supply air temperature (℃)
Dehumidification capacity kg/h (23℃, 20%)
Dehumidification capacity kg/h (23℃, 30%)
Dehumidification capacity kg/h (23℃, 40%)
Residual pressure of outside air supply (Pa)
Regenerative heating power (Kw)
Input electric power (Kw)
Input chilled water cooling capacity (Kw)
Dimensions (mm)
AY-Z500N
500
50
14.0
2.5
3.0
3.3
250
3
3.4
7
2200x900x1000
AY-Z1000N
1000
100
14.0
5.0
6.0
6.6
250
7
7.4
14
2200x1200x1200
AY-Z1500N
1500
150
14.0
8.3
10.0
11.0
350
12
12.8
twenty four
2400x1200x1200
AY-Z2300N
2300
230
14.0
13.3
16.0
17.6
350
18
19.9
37
2400x1200x1200
AY-Z3000N
3000
300
14.0
16.7
20.0
22.0
350
twenty four
25.5
45
2400x1200x1300
AY-Z4500N
4500
450
14.0
25.8
31.0
34.0
350
35
39.1
77
2600x1300x1450
Model
Processing air volume (m²/h)
Fresh air volume (m²/h)
Supply air temperature (℃)
Dehumidification capacity kg/h (23℃, 20%)
Dehumidification capacity kg/h (23℃, 30%)
Dehumidification capacity kg/h (23℃, 40%)
Residual pressure of outside air supply (Pa)
Regenerative heating power (Kw)
Input electric power (Kw)
Input chilled water cooling capacity (Kw)
Dimensions (mm)
AY-Z7000N
7000
700
14.0
38.3
46
50.6
400
48
54.6
109
2600x1500x1600
AY-Z12000N
12000
1200
14.0
69.2
83.0
91.3
400
95
108.2
205
2600x1750x2200
AY-Z18000N
18000
1800
14.0
100.4
125.0
137.5
400
145
163.0
307
2800x2000x2400
AY-Z24000N
24000
2400
14.0
139.2
167.0
183.5
400
195
222.5
410
2800x2000x2400
AY-Z30000N
30000
3000
14.0
175.0
210.0
231.0
500
245
272.5
511
2800x2100x2750
AY-Z40000N
40000
4000
14.0
230.0
277.0
304.0
500
325
366.0
674
3000x2400x2900
Model
Processing air volume (m²/h)
Fresh air volume (m²/h)
Supply air temperature (℃)
Dehumidification capacity kg/h (23℃, 20%)
Dehumidification capacity kg/h (23℃, 30%)
Dehumidification capacity kg/h (23℃, 40%)
Residual pressure of outside air supply (Pa)
Regenerative heating power (Kw)
Input electric power (Kw)
Input chilled water cooling capacity (Kw)
Dimensions (mm)
AY-Z50000N
50000
5000
14.0
283.3
340.0
374.0
500
250
306.0
641
3000x2600x3100
Brand new wind wheel dehumidifier除湿量：2.5kg/h~374kg/h
推荐面积：10m²-500m²
Mini Rotary Dehumidifier除湿量：1.5kg/h-4.5kg/h
推荐面积：10m²-100m²
Purification type dehumidifier除湿量：2.5kg/h~374kg/h
推荐面积：10m²-500m²
Low dew point rotary dehumidifier除湿量：5kg/h~500kg/h
推荐面积：100m²-5000m²
Drying wheel dehumidifier除湿量：8.5kg/h-35kg/h
推荐面积：50m²-500m²
